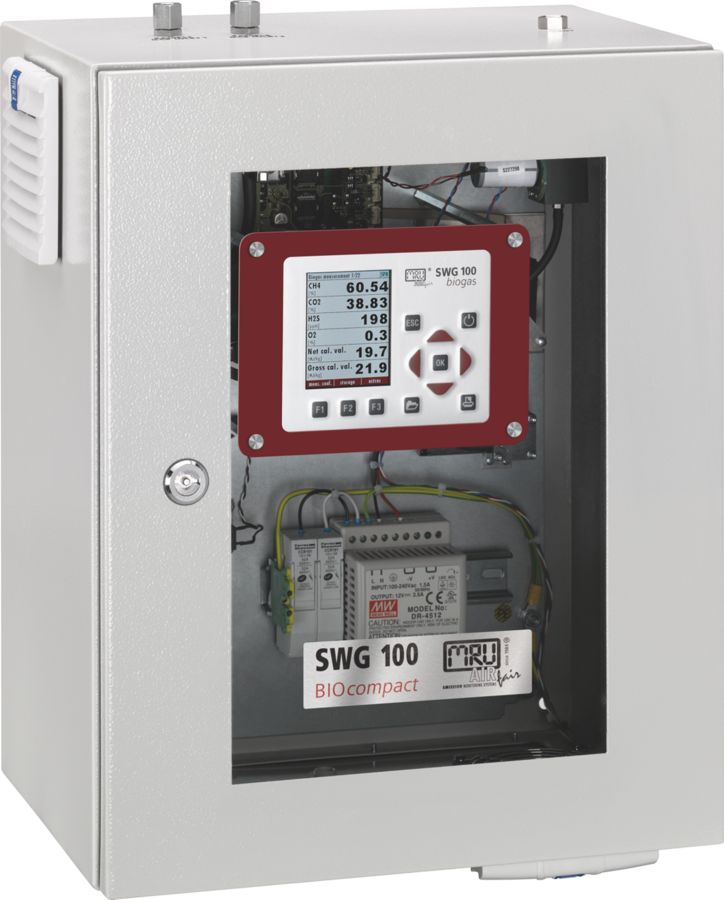

The SWG 100 BIOcompact fixed biogas measuring system is designed for discontinuous measurements (up to 24 measurements per 24 hours) in the harsh industrial environment of combined heat and power (CHP) engine gas monitoring. The analyser may be installed inside or outside, and it samples dry biogas, pressurized or low pressure gas and can be used  for single or dual point sampling of;

• combined heat and power engines
• municipla or industrial waste water treatment sites
• small scale AD plants with dry fermentation
• landfill sites.

The SWG 100 BIOcompact measures CH4, CO2, O2 & H2S.

Main Features;

• cost effective stationary biogas analyser
• accurate measurements, incl. plug&play, pre-calibrated sensors
• safety in use with gas flow restrictor orifice at gas inlet and ventilation
• sampling from low suction up to high pressure gas
• sample gas conditioning for fast and reliable measurements
• no dilution of the sample gas, nor use of compressed air is required
• discontinuous measurement, user settable up to 24 measurements per 24 hours
• IP 54 cabinet for use in harsh environment
